Product

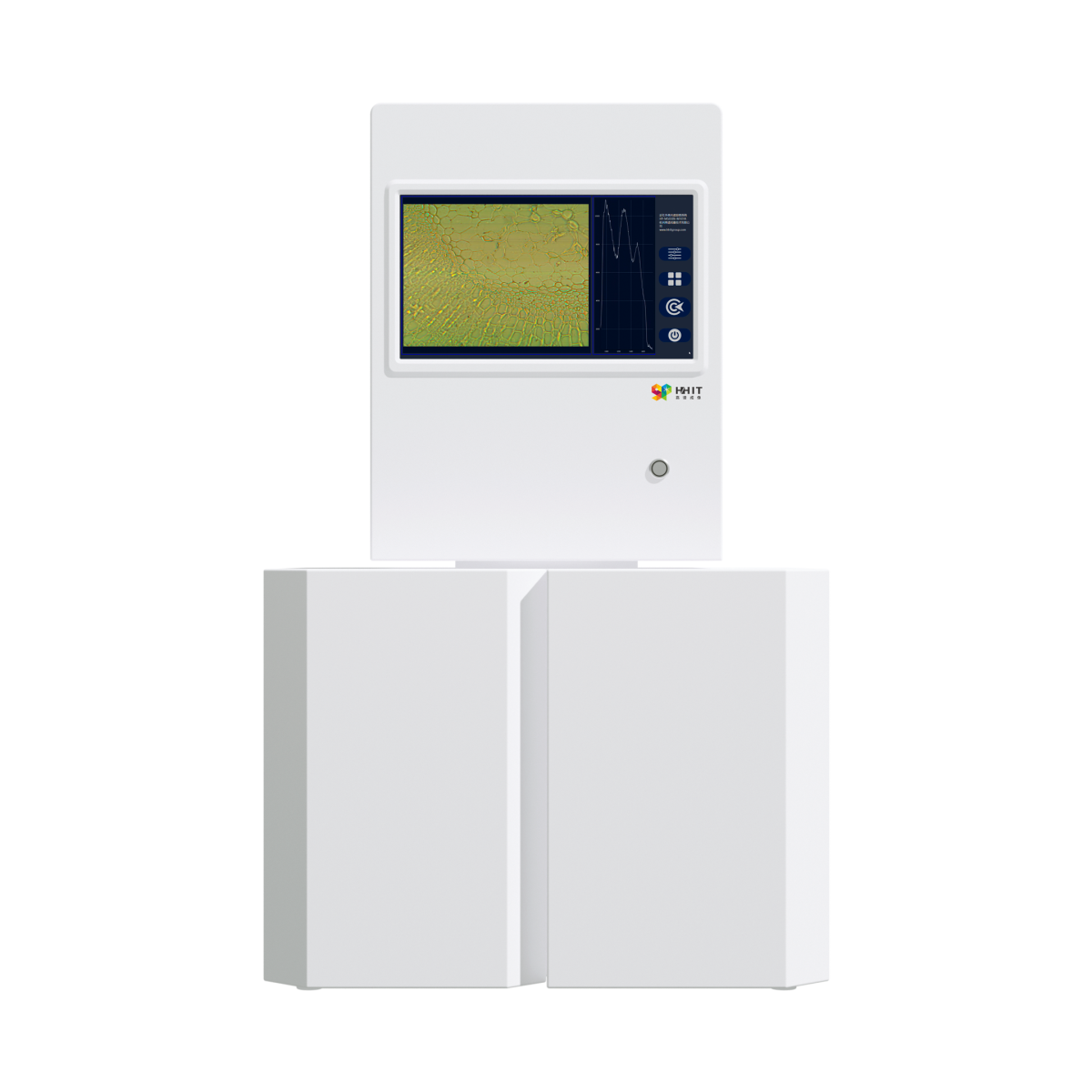

Integrated Near‑Infrared Microscopic Hyperspectral Imager
s an all‑in‑one, high‑performance precision instrument for microscopic spectral detection newly launched by Gaopu Imaging. It is mainly used in near‑infrared microscopic measurement scenarios. The device integrates a near‑infrared hyperspectral camera with a microscope and uses a multi‑slot slide push‑broom system to achieve near‑infrared spectral acquisition of multiple microscopic slides and full sample surfaces. While capturing high‑definition spatial image data of samples, the instrument can also obtain their near‑infrared spectral characteristic information. It has extensive application value in various microscopic detection and analysis fields, including biological cells, material analysis, life sciences, and forensic evidence analysis.

Application Fields

※ Life Medicine & Pathology ResearchEnables label-free, in vivo or in vitro spectral analysis of cells and tissues, supporting cancer tissue screening, drug mechanism research, and pathological model construction.

※ Judicial Forensics & Cultural Relics IdentificationProvides non-destructive spectral comparison of micro traces, inks, fibers, and pigments, offering scientific evidence for material evidence identification.

※ Agriculture & Plant ScienceNon-destructively evaluates cell activity, nutritional status, and stress response by analyzing spectral features of plant stem cross-sections, and predicts growth trends.

※ Materials Science & IdentificationEnables compositional analysis and defect detection of composite materials, polymers, and semiconductors.

Specifications

Integrated Near-Infrared Microscopic Hyperspectral ImagerSpecifications
Wavelength Range900-1700nm
Spectral Resolution8nm
Number of Bands226
Spatial Pixels640
Data Bit Depth12bit
Objective Magnification (Interchangeable)10x
Measurement ModeTransmission, Reflection
Push-broom Imaging ModeObject-side Push-broom
Slide Holder Slots5
Push-broom Range140*70mm
Push-broom Speed20mm/s
Push-broom Unidirectional Accuracy≤±2μm
Push-broom Bidirectional Accuracy≤±2μm
Push-broom Absolute Accuracy≤±3μm
Focusing MethodMotorized
Computing PlatformBuilt-in
Display ScreenBuilt-in
Screen Operation MethodTouch Control
