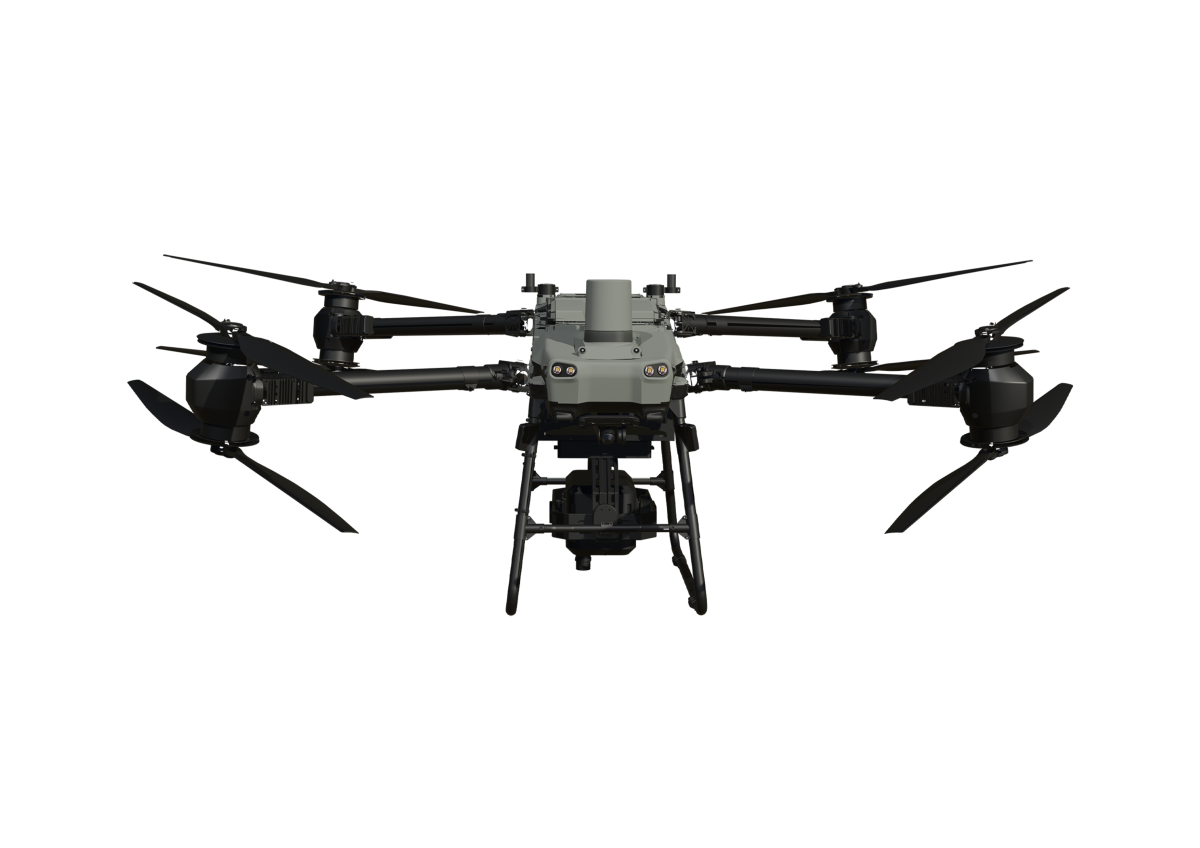

400-2500nm UAV-Borne Hyperspectral Monitoring Systems

The UAV-borne hyperspectral imaging system adopts cutting-edge hyperspectral imaging technology. It fully explores and leverages the unique spectral information inherent in different substances, and integrates with a high-definition camera for capturing high-resolution images. This enables comprehensive detection of the qualitative, quantitative, temporal, and positional information of substances, making it an integrated remote sensing device characterized by "spectral-spatial integration". We have several different models covering different spectral ranges, for example, HY-9010-L for 400~1000nm, HY-9030-L for 900~1700nm, HY-9050-L for 900~2500nm and HY-9070-U for 400~2500nm.

Application Fields

Water Quality & Environmental Protection: Water quality monitoring (total nitrogen, total phosphorus, ammonia nitrogen, chlorophyll, turbidity, potassium permanganate index, etc.)

Soil Monitoring: Soil moisture content monitoring, soil fertility monitoring, heavy metal pollution monitoring

Geological Applications: Mineral mapping, mineral composition detection, mineralization prediction

Agricultural and Forestry Carbon Sink: Agricultural surveying and mapping, pest and disease control, tree species identification

National Defense and Military Industry: Camouflage recognition, unmanned reconnaissance, etc.

Specifications

Module	Parameter	VNIR (Visible Near-Infrared)	SWIR (Short-Wave Infrared)
Module	Parameter	VNIR (Visible Near-Infrared)	SWIR (Short-Wave Infrared)
Main Unit	Spectroscopic Method	Transmission Grating	Transmission Grating
	Spectral Range	400-1000 nm	1000-2500 nm
	Combined Spectral Range	400-2500 nm	1000-2500 nm
	Number of Spectral Bands	300	≥400
	Combined Number of Spectral Bands	≥640	≥400
	Spectral Resolution	Better than 2.8 nm	Better than 10 nm
	F-Number	F/2.6	F/2.0
	Detector	CMOS	HgCdTe (Stirling Cooled)
	Detector Interface	USB 3.0	GigE
	Detector Target Size	11.3mm x 7.1mm	9.6mm x 7.68mm
	Detector Original Pixel Size	5.86 µm x 5.86 µm	15 µm x 15 µm
	Effective Pixel Bit Depth	12 bits	14 bits
	Effective Slit Length	11.3mm	9.6mm
	Slit Width	25 μm	25 μm
	Recommended Pixel Binning Mode	1x1	1x1
	Spatial Dimension Effective Pixels	1920	640
	Combined Spatial Pixels	640
	Field of View (FOV)	21° @ f=25mm	21° @ f=25mm
	Combined Field of View (FOV)	21° @ f=25mm
	Instantaneous Field of View (IFOV)	1 mrad @ f=25mm	1 mrad @ f=25mm
	Combined Instantaneous Field of View (IFOV)	1 mrad @ f=25mm
	Max Frame Rate	128 fps	100 fps
	Detector Power Supply	12V DC, 4.3W	24V DC, 30W
	Operating Temperature	0-40°C
	Storage Temperature	0-50°C
